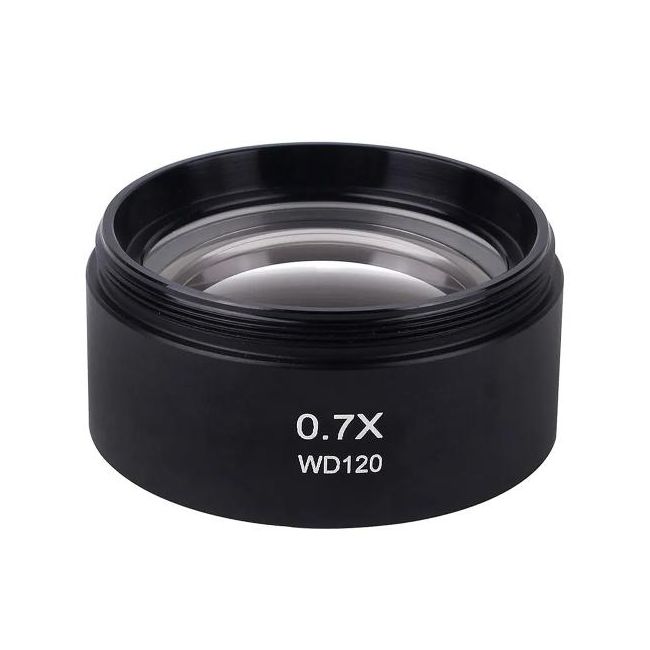

MECHANIC MCNCTV Electronic Eyepiece Camera Lens F6-0.7X

Be the first to review this product

JOD 8.00

Availability:

In stock

SKU

MEC-F6MCNCTV07

Details

0.7X Electronic Eyepiece Lens: Professional reduction lens designed for industrial microscope cameras and compatible trinocular microscope systems.
C-Mount Camera Adapter: Functions as a C-Mount optical adapter for connecting compatible digital microscope cameras to trinocular microscope photoports.
0.7X Reduction Optics: Provides a balanced combination of magnification and Field of View (FOV) for detailed digital microscope inspection.
Closer Digital Viewing: Compared with lower reduction ratios, the 0.7X optical configuration provides a closer view of microscopic components while maintaining useful workspace coverage.
Balanced Field of View: Helps display detailed PCB areas without excessively narrowing the visible working region.
Trinocular Microscope Compatibility: Designed for compatible trinocular microscopes used in smartphone and micro-electronics repair.
Manual Focus Adjustment Ring: Integrated focus ring allows technicians to fine-tune digital image sharpness after installation.
External Monitor Optimization: Focus adjustment supports clearer viewing on compatible HDMI and 4K external displays.
Multi-Coated Optical Glass: Premium optical glass with multi-layer coatings supports efficient light transmission and detailed image reproduction.
Reduced Internal Reflections: Optical coatings help minimize unwanted internal reflections that may affect contrast and image clarity.
High-Contrast Viewing: Supports clearer separation of fine PCB traces, solder joints, IC structures, and micro-components.
Aluminum Alloy Body: Durable aluminum construction provides a rigid and lightweight housing for professional repair workstation use.
Stable Optical Alignment: Threaded mounting helps maintain consistent positioning between the microscope photoport and compatible camera.
Detailed Trace Inspection: Suitable for examining fine copper traces, damaged circuits, solder bridges, connectors, and densely populated PCB areas.
Micro-Soldering Support: Digital microscope viewing assists with precision soldering, Jumper Wire work, IC servicing, and component replacement.
BGA Reballing Applications: Balanced magnification and adjustable focus support detailed BGA positioning, reballing, and solder inspection.
Professional Digital Imaging: Suitable for PCB diagnostics, live inspection, repair documentation, technical training, and microscope camera workflows.
