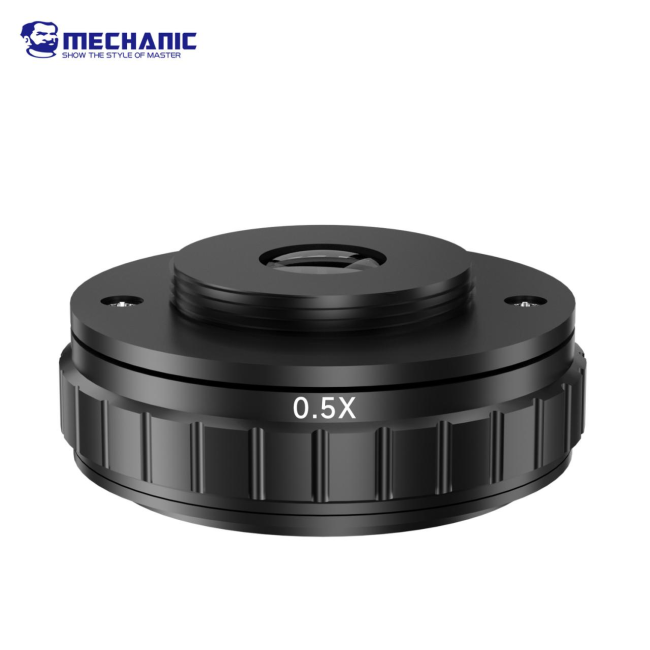

MECHANIC MCNCTV Electronic Eyepiece Camera Lens F6-0.5X

Be the first to review this product

JOD 20.00

Availability:

In stock

SKU

MEC-F6MCNCTV05

Details

0.5X Electronic Eyepiece Lens: Professional reduction lens designed for industrial microscope cameras and compatible trinocular microscope systems.
C-Mount Camera Adapter: Functions as a C-Mount optical adapter for connecting compatible digital cameras to trinocular microscope photoports.
0.5X Reduction Optics: Reduces optical magnification to provide a wider camera Field of View (FOV) for PCB inspection and repair.
Expanded Field of View: Helps capture a larger section of the motherboard on the connected digital display without frequent repositioning.
Simul-Focal Setup Support: Designed to help align the digital camera view more closely with the image observed through the microscope eyepieces.
Trinocular Microscope Compatibility: Intended for compatible trinocular microscopes used in smartphone and micro-electronics repair.
Manual Focus Adjustment Ring: Integrated focus ring allows technicians to fine-tune digital image sharpness after camera installation.
External Monitor Optimization: Focus adjustment supports clearer viewing when microscope images are displayed on compatible HDMI or 4K monitors.
Multi-Coated Optical Glass: Premium optical glass with multi-layer coatings supports efficient light transmission and detailed image reproduction.
Reduced Internal Reflections: Optical coating helps minimize unwanted internal reflections that may reduce contrast during digital inspection.
Improved Image Contrast: Supports clearer separation of fine PCB structures, solder joints, traces, and micro-components.
Aluminum Alloy Body: Durable aluminum construction provides a rigid and lightweight housing for professional workstation use.
Stable Optical Alignment: Threaded installation helps maintain consistent positioning between the microscope photoport and compatible camera.
Detailed Trace Inspection: Suitable for observing fine copper traces, damaged paths, solder bridges, connectors, and dense motherboard areas.
Micro-Soldering Support: Digital viewing assists with precision soldering, Jumper Wire work, component replacement, and IC-level repair.
BGA Reballing Applications: Wider digital viewing and adjustable focus support detailed observation during BGA positioning and reballing procedures.
Professional Digital Imaging: Suitable for PCB diagnostics, live inspection, repair documentation, technical training, and microscope camera workflows.
