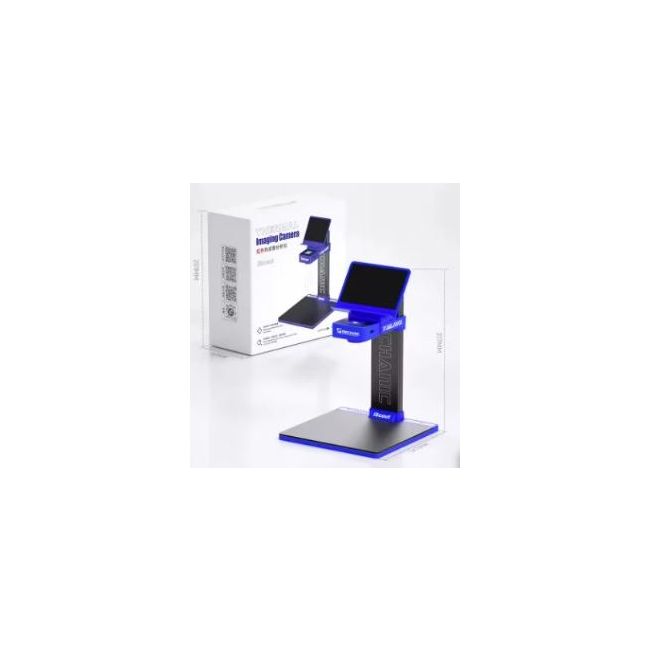

MECHANIC ISCOUT Infrared Thermal Imaging Analyzer for PCB Diagnostics

Be the first to review this product

JOD 200.00

Availability:

In stock

SKU

MEC-ISCOUT

Details

Infrared Thermal Diagnostics: Professional thermal imaging analyzer designed to help technicians diagnose faults on smartphone and precision-electronics PCBs.
Real-Time Thermal Scanning: Monitors temperature distribution across the board to help locate abnormal heating and suspected fault areas quickly.
Short-Circuit Detection Support: Helps identify components associated with excessive current draw or localized heating caused by electrical shorts.
High-Sensitivity Infrared Optics: Advanced infrared imaging system detects small temperature differences across electronic components and PCB areas.
Live Thermal Mapping: Displays a real-time thermal map that makes temperature variations across the board easier to visualize and analyze.
2D & 3D Analysis Support: Compatible analysis software can display thermal information in two-dimensional and three-dimensional visualization modes.
PC Analysis Software: Dedicated computer software provides an expanded interface for observing and analyzing captured thermal data.
Component-Level Fault Finding: Helps technicians narrow down potentially faulty capacitors, ICs, and other components producing abnormal heat.
Low-Level Heat Detection: Useful for locating subtle thermal changes that may be difficult to identify through visual inspection alone.
Thermal Comparison Tools: Supports comparative analysis of temperature behavior across different PCB areas to assist diagnostic work.
Thermal Reporting: Analysis software supports recording and reviewing thermal information for more organized troubleshooting.
Cleaner Diagnostic Workflow: Can reduce dependence on traditional heat-location methods such as cooling spray, flux, or other indirect fault-finding techniques.
Adjustable Working Structure: Rigid adjustable stand allows technicians to position the thermal imaging unit at a suitable working height over the PCB.
Insulated Base: Integrated base provides a dedicated working platform for board inspection and thermal diagnostic procedures.
Professional PCB Applications: Suitable for smartphone motherboard repair, PCB diagnostics, short-circuit troubleshooting, IC inspection, current-draw analysis, and precision electronics maintenance.
