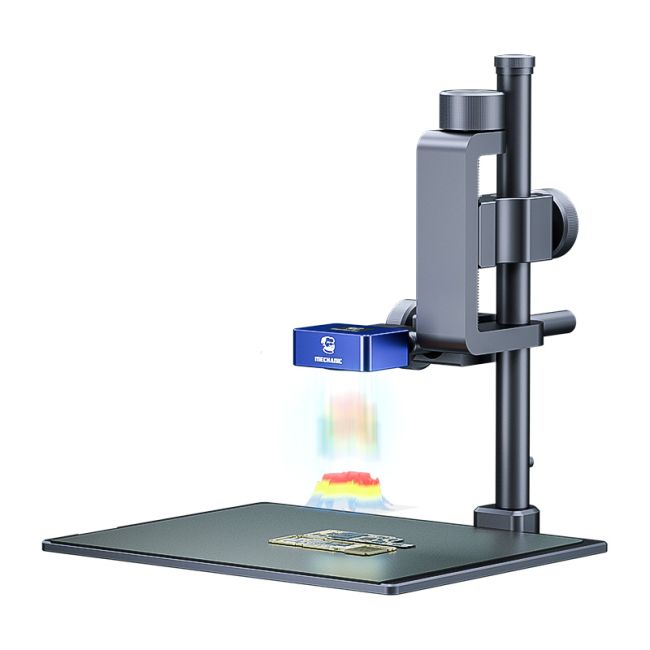

MECHANIC TI-08 3D Infrared Thermal Imaging Analyzer for PCB Diagnostics

Name: MECHANIC TI-08 3D Infrared Thermal Imaging Analyzer for PCB Diagnostics
Brand: MECHANIC
SKU: MEC-TI08
Price: 180.00 JOD
Availability: InStock

Be the first to review this product

JOD 180.00

Availability:

In stock

SKU

MEC-TI08

Details

3D Infrared Thermal Analyzer: Professional thermal imaging system designed for smartphone PCB diagnostics, fault analysis, and component-level electronics repair.
Infrared Thermal Detection: Advanced infrared sensor monitors temperature variations across the PCB surface to help locate abnormal heat patterns.
3D Thermal Visualization: Converts detected temperature data into three-dimensional thermal maps for clearer analysis of localized heating behavior.
Short-Circuit Detection Support: Helps technicians identify areas associated with electrical shorts and abnormal component heating.
Power Leakage Diagnostics: Useful for locating thermal anomalies that may indicate excessive current draw or power leakage on powered PCBs.
Micro-Current Fault Detection: Sensitive thermal analysis can help reveal subtle temperature changes associated with low-level electrical faults.
Real-Time PCB Analysis: Provides live thermal feedback while the board is being tested under controlled power conditions.
PC Analysis Software: Dedicated computer software provides detailed visualization and analysis of captured thermal data.
Component-Level Fault Localization: Helps narrow down potentially faulty capacitors, resistors, power ICs, and other components producing abnormal heat.
Active Power Testing Support: Suitable for observing thermal behavior while compatible boards are powered through diagnostic power equipment.
Detailed Thermal Mapping: Makes temperature distribution easier to compare across different PCB areas during troubleshooting.
Reduced Dependence on Traditional Methods: Can reduce the need for indirect heat-location techniques such as freezing spray, flux, or other manual diagnostic methods.
Micro-Adjustable Vertical Pillar: Adjustable support structure allows precise positioning of the thermal imaging unit above the PCB.
Stable Workstation Base: Insulated repair base provides a dedicated platform for board positioning during thermal analysis.
ESD-Safe Workstation Design: Designed for professional electronics environments involving electrostatic-sensitive PCBs and components.
Professional Diagnostic Applications: Suitable for PCB diagnostics, short-circuit troubleshooting, power-rail fault analysis, IC inspection, motherboard repair, and micro-soldering support.
