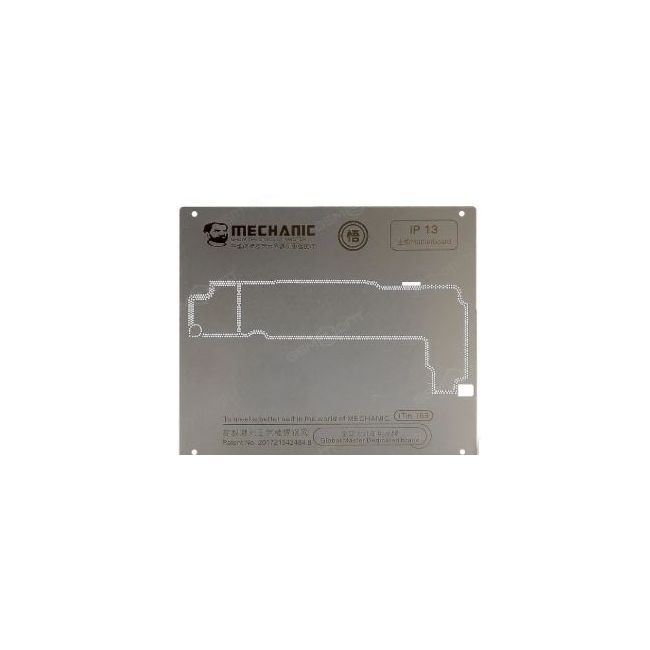

MECHANIC iTin 169-IP 13 Middle Layer BGA Steel Reballing Stencil for iPhone 13 Series

Be the first to review this product

JOD 4.00

Availability:

In stock

SKU

MEC-ITIN169IP13

Details

iPhone 13 Series BGA Stencil: Professional middle-layer steel stencil designed for Reballing and Logic Board repair workflows across compatible iPhone 13 series motherboards.
iPhone 13 Series Compatibility: Designed for compatible iPhone 13, iPhone 13 mini, iPhone 13 Pro, and iPhone 13 Pro Max Logic Boards.
Double-Stacked Logic Board Support: Supports precision middle-layer alignment and bonding procedures on compatible multi-layer motherboard structures.
Heat-Resistant Steel: Manufactured from high-grade steel designed to maintain stability during controlled Reflow and Hot Air Rework.
Anti-Deformation Structure: Reinforced construction helps reduce stencil bending, bulging, and distortion during repeated thermal procedures.
Micro-Square Apertures: Precisely calibrated square openings support accurate alignment with compatible middle-layer frames and peripheral Pad arrays.
Precision Laser-Cut Design: Fine laser-cut apertures support controlled positioning and consistent Solder Paste application.
Uniform Solder Paste Distribution: Aperture geometry helps distribute Solder Paste evenly across dense motherboard connection arrays.
Reduced Micro-Bridging: Accurate stencil alignment and controlled paste application help reduce unwanted Solder Bridging during Reballing when used correctly.
Professional Logic Board Repair: Suitable for Middle-Layer Bonding, BGA Reballing, Missing Pad repair support, Solder Paste application, and advanced iPhone motherboard servicing.
