MECHANIC T810 Tail Plug Detection Test Board for Fast Micro-Diagnostics

JOD 6.00

Availability:

In stock

SKU

MEC-T810

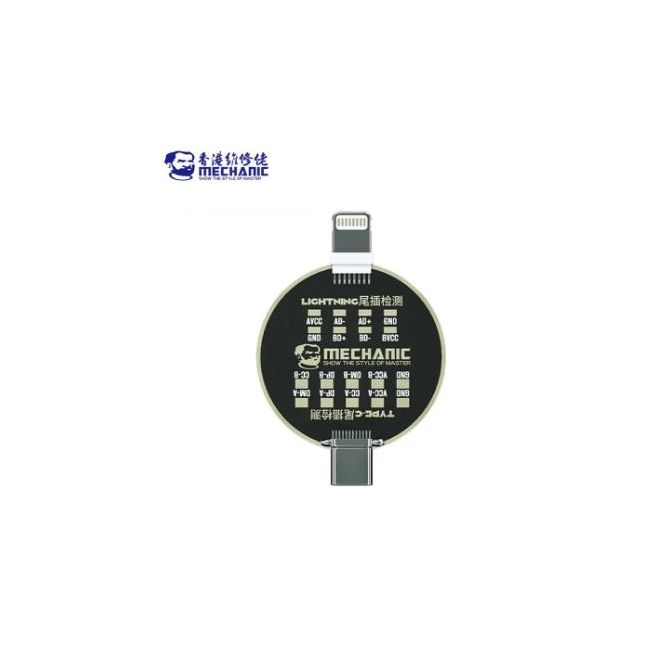

Fast Charging Port Diagnostics: Compact diagnostic board designed for rapid testing of smartphone charging-port and power-line related faults.
Preliminary Non-Disassembly Testing: Supports fast diagnostic checks without complete device teardown where the repair setup allows.
U2 IC Diagnostic Support: Suitable for troubleshooting charging and power-management issues associated with compatible U2 IC circuits.
Accessible Micro Test Points: Integrated test points provide convenient access for precision voltage, resistance, and current measurements.
Voltage Measurement Support: Helps technicians inspect voltage behavior across compatible charging and power delivery lines.
Resistance Testing: Supports resistance measurements for tracing abnormal lines, shorts, and related motherboard faults.
Current Draw Analysis: Allows technicians to evaluate current behavior during compatible charging and diagnostic procedures.
Overvoltage & Overcurrent Protection: Integrated protection design helps reduce electrical risk to the test board and connected circuitry during appropriate use.
Stable Charging Port Connection: Precision connector design supports secure engagement with compatible charging interfaces during testing.
Professional Diagnostic Application: Ideal for smartphone charging diagnostics, U2-related troubleshooting, PCB analysis, and advanced mobile repair workbenches.
