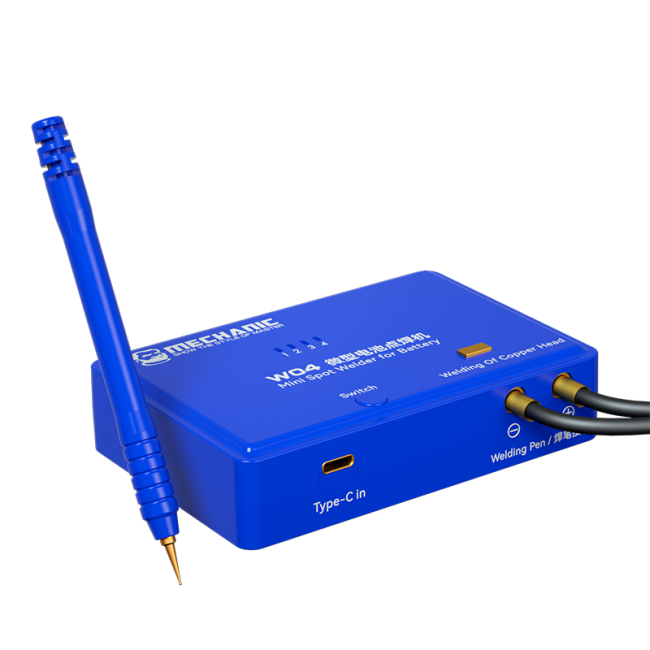

MECHANIC W04 Mini Precision Spot Welding Machine

Features:

• The operating voltage complies with mobile phone industry standards to avoid the breakdown of battery cells

• Breakthrough the precision of traditional soldering pencil the tip is as fine as 0.5mm

• Multi-power adjustable output, precise welding

• The spot welding machine is also a power bank with a capacity of up to 3850mAh

• It is suitable for the replacement of mobile phone electronic components and small battery boards, and precision welding of lithium battery nickel chips

• It can weld nickel sheets of lithium battery and supports welding of mobile phone batteries such as Apple, Xiaomi, Huawei, etc

• Four gear adjustment, multi-power adjustment, output, and precise welding

Specifications:

• Product name: Maintenance Lao miniature battery spot welder

• Product Model: W04

• Product size: 112 * 85 * 25mm

• Battery capacity: 3850mAh

• Output voltage: 4.2V (Max)

• Output current: 650A (Max)

• USB output: 5V 2.4A (Max)

• Micro USB input: 5V-2A

• Output interface: Micro/IN input

• Recommended nickel strip thickness: 0.1~0.2mm

• Scope of application: It is applicable to the replacement of mobile phone electronic components, small battery boards, and nickel sheets of lithium batteries equal precision welding
