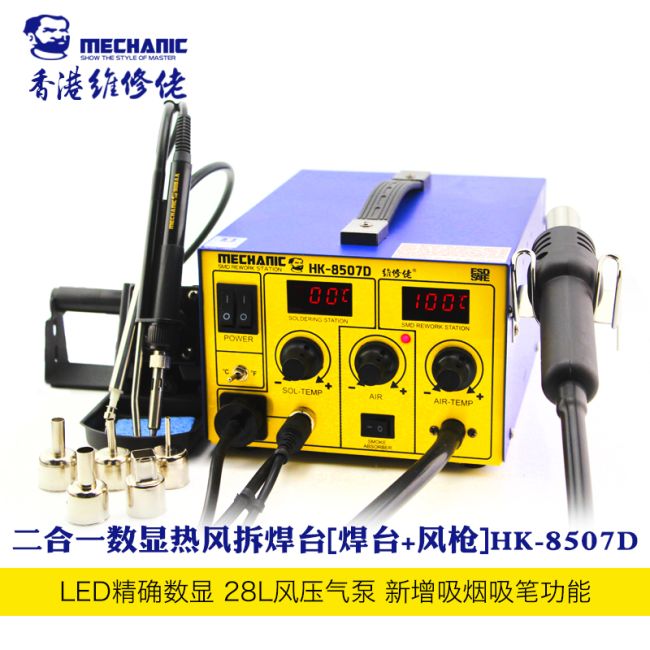

MECHANIC HK-8507D Hot Air Rework Station

Features:

• 60W high-power imported heating core, fast heating, accurate temperature, suitable for large solder joint disassembly and welding

• Double-sided circuit board both sides are connected by copper sheet, which is not easy to be damaged and has high stability and reduces the situation of false welding

• It conforms to the design of human body mechanics and has a comfortable grip

• It adopts high temperature resistant and flame retardant environmental protection material and has a longer service life

• The handle length is 18CM. Nozzle models: 3mm, 5mm, 8mm, 10mm, 13*13mm.

• Imported ceramic skeleton heating core is manufactured by skeleton winding process, which increases stability, is not easy to burn, and short circuit

• Fahrenheit and Celsius temperature switching to meet the needs of different countries.

• LED Precision Digital DisplayDual digital display of air gun welding platform, precise temperature control, and good temperature linearity can effectively avoid damaging electronic components due to temperature error

• Smoke can be easily sucked away. Smoke can be tucked away for the first time during welding, which makes maintenance more environmentally friendly and convenient

• Opening design of soldering iron rack can place soldering iron head and other maintenance tools, and more convenient use of hanging tin rack to place tin wire

• When not in use, turning off the main switch at the back of the machine can completely cut off the power, eliminate hidden safety hazards and improve the safety performance of the machine



Specification:

• Brand: Mechanic

• Product model: HK-8507D

• Product name: 2 in 1 digital display hot air desoldering station

• Voltage: AC110V/220V

• Airflow type: brushless fan soft wind

• Airflow: 28L/min

• Air gun temperature range: 100℃~480℃/212℉~896℉

• Power consumption: <720W±10%

• Heating core: high power heating core

• Soldering iron power: 60W

• Noise: <45dB

• Soldering iron temperature range: 200℃~480℃

• Temperature stability: ±2℃

• Tip-to-ground voltage: <2mV

• Host Weight: 4.04kg

• Host size: 24.9*18.7*12.4cm

• Packing size: 56*34.5*42cm

• Tip-to-ground resistance <20hm



Package includes:

• 1 x Main unit with air gun handle

• 1 x Air Gun Bracket

• 5 x Air nozzles

• 1 x Soldering Iron Tip

• 1 x Soldering Iron Holder

• 1 x Sponge
