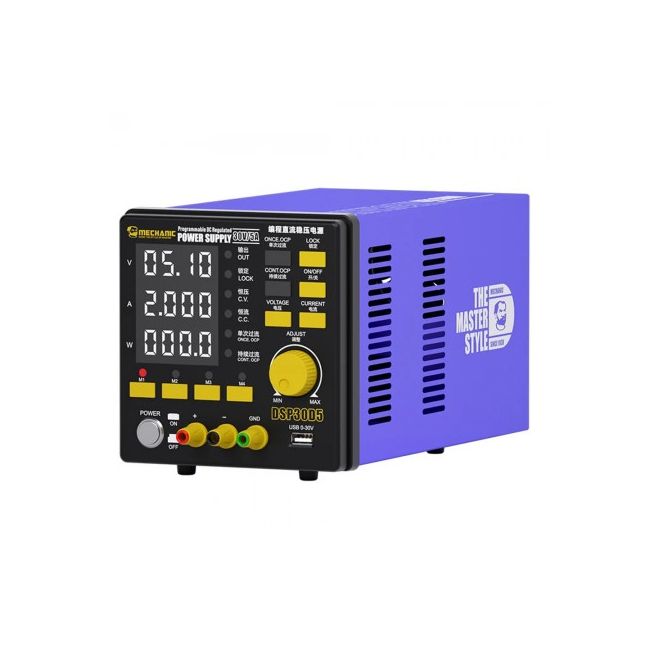

MECHANIC DSP30D5 DC Regulated Power Supply

Features:

• This feature provides a highly accurate numerical display, using four-bit display technology, which can clearly display the voltage and current values of the power supply

• This high-precision display provides more accurate data, helps users to better control and monitor the working state of the power supply

• Fine-tuning linear power supply, the voltage can be fine-tuned to 0.1V, current can be fine-tuned to 0.01A

• Control the power, fine adjustment, the new power equipment the perfect combination of precision and power

• The voltage can be fine-tuned to 0.1V and the current can be fine-tuned to 0.01A

• It not only has excellent fine-tuning function but also strong stability and reliability

• In the maintenance and commissioning of electronic equipment, accurate voltage and current testing is crucial.

• Low ripple/Constant voltage/Constant Current/Overvoltage and overcurrent protection/Output switch control/Power off memory function

• Panel lock function/Four-group storage function/High precision four-bit display

• Three-side heat dissipation, cooling fan on the back of the machine, cooling holes on both sides of the body

Specifications:

• Name: Programmable DC Regulated Power Supply

• Model: DSP30D5

• Power: 150W

• Voltage: AC 110V/220V

• Input Voltage: 0-30V Anytime adjustable

• Voltage stability: ≤0.01%+3mv

• Voltage load stability: 0.01%+3mv

• Ripple noise current: ≤0.1%Vrms

• Recovery time: 100uS

• Temperature coefficient: ≤300PPM/°C

• Constant current output current: 0-5A Anytime adjustable

• Current stability: ≤0.1%+3mA

• Current load stability:: 0.1%+3mA

• Ripple noise voltage: ≤0.1%Vrms

• Storage conditions: <80°

• Operating conditions:: -10℃-40℃

• Size: 270*150*160mm

• Net Weight: 3.55KG



Package includes:

• 1 x Power Supply

• 1 x Power Cable

• 1 x Alligator Clip
